Three dimensional motion mixer takes advantage of mechanical force and gravity. It is a kind of machine which mixes two kinds or even more kinds materials evenly. Mixing machines are widely applied to
Various kinds of industries and daily life. Three dimension ald motion mixer can make many kinds of materials into even mixture, such as cement, sand, breakstone and concret wet materials. This machine can also enlarge contact area in order to promote chemical reaction and speed up physical change. For example, add solvent to granular solute. The force of mixing machine can speed up the even mixing of solution. Frequently-used three dimensional motion mixer is divided into four kinds, gas mixer and low viscosity liquid mixer, middle viscosity liquid mixer and paste mixture machine, thermoplasitic material mixing machine and powder and granular solid material mixer.
Setting of three dimensional mixer working environmental
In the process of mixing, all materials which join in the process must distribute evenly. The degree of mixing can be classified into perfect mixing, random mixing and completely immiscible. the mixing degree of materials in the mixer is decided by materials’ proportion, physical state, specialty of materials, the type of mixer and the time used for mixing. The mixing of liquid is mianly depends on the mechanical agitator, airflow and jet of liquid which will be mixed to agitate materials which will be mixed and achieve even mixing. Agitating leads to the flow of partial liquid. The flowing liquid will drive it surrounding liquid. As a result, circulating fluid will be formed in the mixer. The spread between liquid caused by this will become convection diffusion. When the speed of agitated liquid is fast, there will be shear force between high speed liquid flow and slow-speed liquid flow. Therefore, a great amount of local vortex will be produced. These vortex will spread rapidly toward four directions and brings more liquid into the vortex. Disorder convection diffusion formed in a small range is called turbulent diffusion. Moving parts of mixer also produces shear action in the rotary process. When liquid flows through mixer wall and various fixed components installed in vessel, liquid will also receive shearing action which will cause much local vortex diffusion. Main body convection diffusion and vortex diffusion caused by agitating adds diffusion area and reduce the diffusion distance. Therefore, the diffusion time of molecular will be shortened. If the stickness of liquid which will be mixed, causually mixing state can be realized in a short time. If the stickness is pretty high, the time used for mixing will much longer. For liquid with different density, composition and incompatibility, shear force caused by agitating and violent turbulent will crush liquid with big density into small liquid drops and make the small liquid drops scatter evenly into main liquid. The flow speed of liquid must be faster than the settling velocity of liquid. Working principle: in the process of running of three dimensional mixer, owing to the multi-directional running and operation, the flow and diffusion effect will be speeded up in the mixing process of materials. Meanwhile, the problems that material specific gravity segragation and agglomeration phenomenon in common mixers. There is no dead angle in the mixing process. It can also gurantee the best quality of materials mixed.

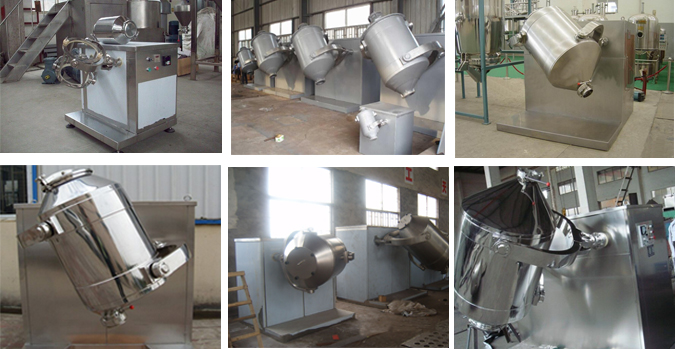

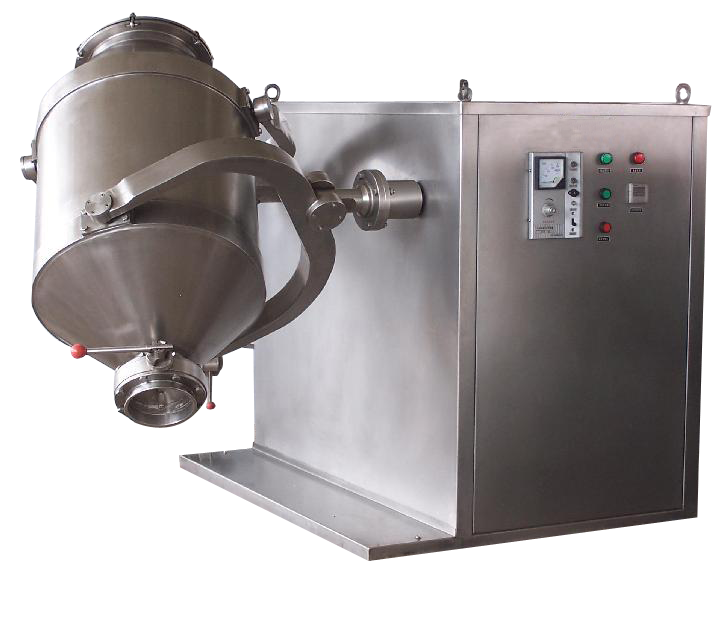

Appreance chart of three dimensional motion mixing machine

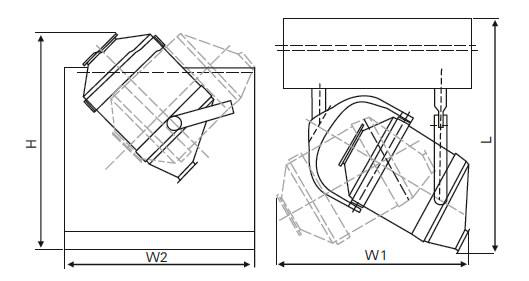

Structure of three dimensional mixer
This machine is composed of engine base, transmission system, electrical control system and multi direction operating structure. Characteristics: owing to that drum body can move multi directinally, there are more points for materials’ mixing. It holds very good mixing effect. The uniformity of mixing can reach mover 99.9%. The largest load coefficient can reach 0.9( the load coefficient of normal mixers can only reach to 0.4 to 0.6 ). The time used for mixing is short and the mixing efficency is high. Three dimensional mixer holds special design. After fine polishing, there is no dead angle in the mixing process. The mixer holds many advantages such as no pollution, convenient discharging operation and easy to clean.

In the process of running of three dimensional mixer, owing to the multi-directional running and operation, the flow and diffusion effect will be speeded up in the mixing process of materials. Meanwhile, the problems that material specific gravity segragation and agglomeration phenomenon in common mixers. There is no dead angle in the mixing process. It can also gurantee the best quality of materials mixed.
