Product introduction:
Brief introduction:
Vertical cone spiral ribbon mixer holds good mixing effect, convenient discharging and other advantages. It can match with liquid spraying device, heating device, lifting device and drying device. Speical spiral ribbon will lift materials up continously from bottom. Fog type liquid spraying device can spray liquid evenly on materials which are being mixed in order to guarantee the fully mixing of materials. Heating device is equipped and it is a kind of ideal drying equipment.
Functions:

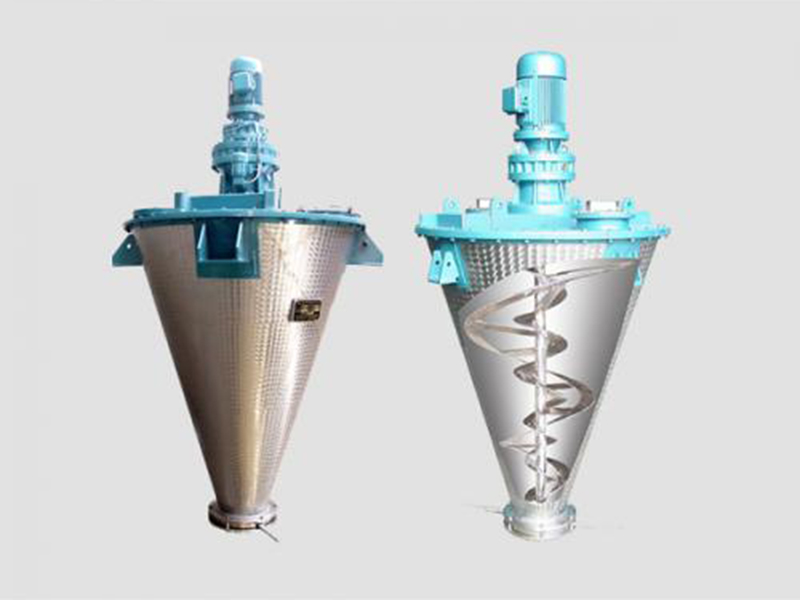

Vertical cone spiral ribbon mixer holds strong mixing effect which drives materials close to vessel wall move upward and central materials move downward. the soft movement can completely mix materials with flowability. A great amount of materials can be mixed evenly in a short time. Almost all materials can be evacuated cleanly.
an>Check if the discharging valve is closed or not before starting the machine;
4. While mixing materials, the volume of materials should not be over 60% to 70% of total. Otherwise, it will cause damge to equipment and affect mixing effect;
5. Customers are supposed to read information mentioned above carefully. After finishing checking, start the operation of equipment. Or we will not provide warranty of maintenance.

Features:
Solid materials which can flow freely is located at the cantilever shaft structure. The end of shaft will not contact with materials. The gap between agitating paddle of vertical cone mixer and vessel wall is very small to prevent materials bonding. Standard agitating stirring drive box will make sure the stably running. The maintenance of this equipment is low. It adopts proper seal structure aiming at various application. Shaft seal is installed away from product. Make sure that the tested and used mixer with good seal.
Applications:
Vertical cone spiral mixer provides you mixing service for solid powder such as fine chemicals, dyestuff and fertilizers. Mix batchly materials which are crystalline powder sensitive to shear action and mix liquid into solid equipment. The design of this equipment can be well applied to the general arrangement of special chemical plants. Owing to its low peripheral speed, it can also be applied to dangerous places.

Operations:
1. Check whether each unit can work normally;
2. While mixing materials, feed materials after starting agitating; don’t start the machine after finishing feeding; otherwise, it will cause damage to shaft, gear, reducer, motor and agitating shaft.
3. Check if the discharging valve is closed or not before starting the machine;
4. While mixing materials, the volume of materials should not be over 60% to 70% of total. Otherwise, it will cause damge to equipment and affect mixing effect;
5. Customers are supposed to read information mentioned above carefully. After finishing checking, start the operation of equipment. Or we will not provide warranty of maintenance.
