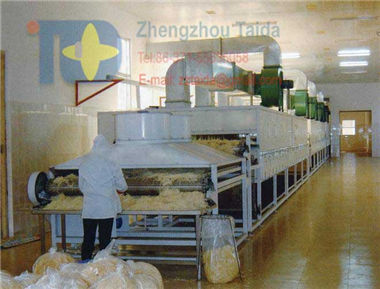

Several-decked mesh-belt dryer machine is a continuous penetrating flow drying equipment applied for drying pieces strip and particles state materials with good ventilation

The machine is suitable for the materials such as food, fruit, marine products, dewatering vegetable, herbal medicine of traditional Chinese medicine and others, for which the water contents are high and high drying temperature is not allowed

The machine owns the advantages of fast drying speed, high evaporation capacity, and good product quality

The de-watered and filtered cake state paste material should be made into particles or strips before drying process

The materials are uniformly distributed on the mesh-belt by the material feeder

The mesh-belt generally adopts 12 to 60 stainless steel mesh and it is drawn by a transmission device and move inside the dryer

The dryer is composed of several sections

For each section, the hot air is circulated separately

Part of exhausted gas is exhausted by a special moisture exhaust blower

The waste gas is controlled by an adjustment valve

The hot air passes through the mesh-belt covered with bring water material away

The mesh-belt moves slowly, running speed can be freely adjusted according to the material property

The final products after the drying process will fall into the material collector continuously

The top and low circulation units can be freely equipped according to the users requirements

The number of section might be selected according to the production demands

Technical Specification:
